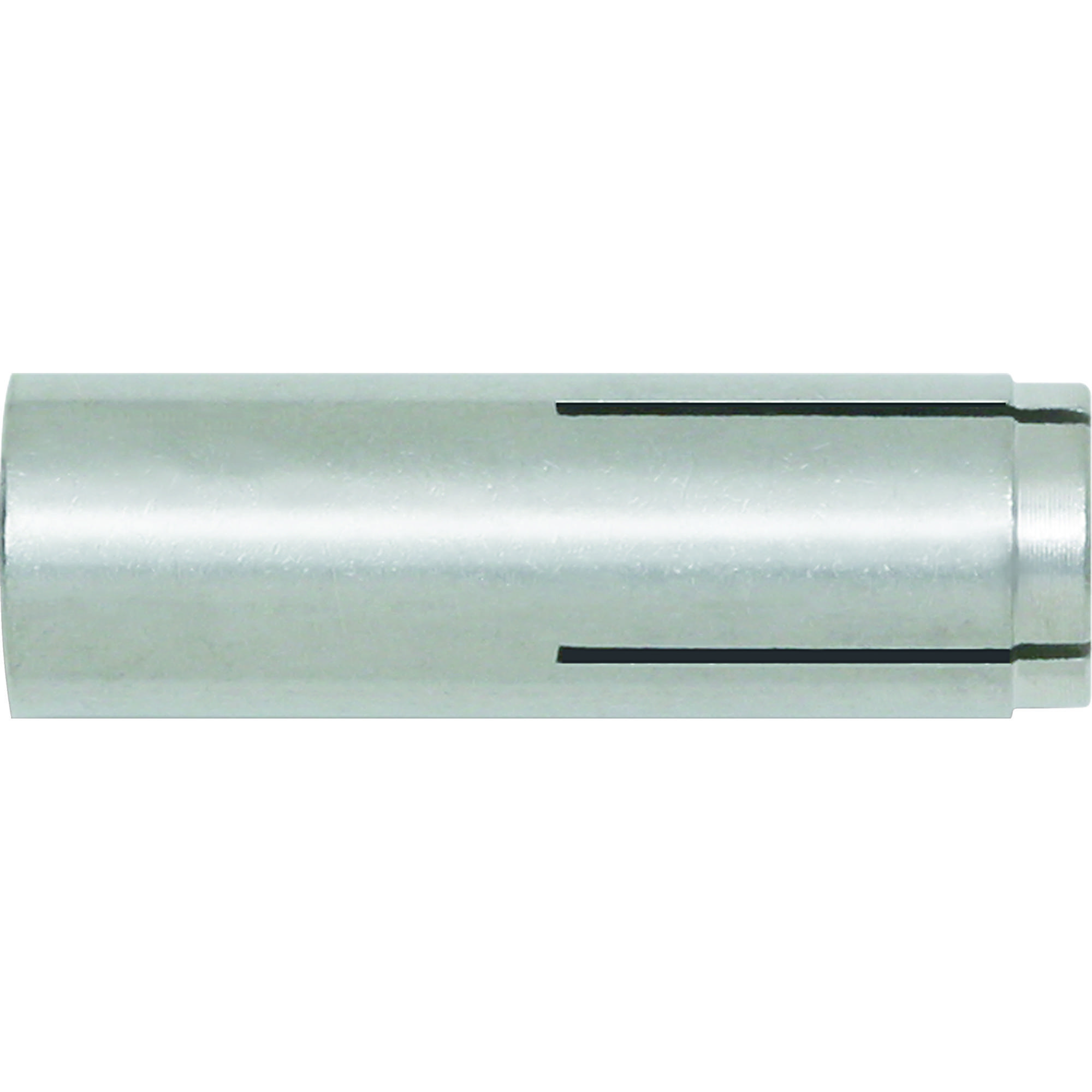

DeWALT® Steel Dropin™ 06206-PWR Internally Threaded Expansion Anchor, 3/8 in, 304 Stainless Steel, 1/2 in Drill, 1-9/16 in D Min Embedment
08338304
MFG #: 06206-PWR
$0.00
/ Each
Item currently not in stock. Lead time based upon availability from the manufacturer.
- Type: Internally Threaded, Threaded
- Bolt/Rod Size: 3/8
- Thread Size: 3/8-16
- Material: 303/304 Stainless Steel, 304 Stainless Steel
- Drill Size: 1/2
- Minimum Embedment Depth: 1-9/16
- Thread Length: 5/8 in
- Thread Type: UNC
- Overall Length: 1-9/16, 1-9/16 in
- Shear Strength: 810 lb at 2000 psi/925 lb at 3000 psi/1040 lb at 4000 psi for Concrete
- Tensile Strength: 600 lb at 2000 psi, 795 lb at 3000 psi, 990 lb at 4000 psi for Concrete
- Finish: Zinc Plated
DeWALT® Steel Dropin™ Expansion Anchor, Internally Threaded, 3/8 in Bolt/Rod, 3/8-16 Thread, 304 Stainless Steel, 1/2 in Drill, 1-9/16 in Minimum Embedment Depth, UNC Thread, 1-9/16 in Overall Length
- Internally threaded
- Lipped edge (DIAS) eliminates need for precisely drilled hole depth
- Available in coil-thread version for 1/2 in and 3/4 in coil-threaded rod
- Smooth wall drop-in
- 2600 to 2700 deg F freezing/melting point
- Flanged (lipped) ver
- Anchor body AISI 303 meets chemical requirements of ASTM A582
- Coil thread version
- AISI 303 expander plug
- The allowable loads are based on a safety factor of 4
- The minimum concrete thickness is 1-1/2 times the embedment depth
Internally threaded anchor for easy bolt removability and service work
Lipped edge (DIAS) eliminates need for precisely drilled hole depth
Available in coil-thread version for 1/2 in and 3/4 in coil-threaded rod
Smooth wall drop-in can be installed flush mounted or below the base material surface
2600 to 2700 deg F freezing/melting point
Flanged (lipped) version installs flush for easy inspection and standard embedment
Anchor body AISI 303 meets chemical requirements of ASTM A582
Coil thread version accepts coil rod and typically used for concrete formwork applications
AISI 303 expander plug
The allowable loads are based on a safety factor of 4
The minimum concrete thickness is 1-1/2 times the embedment depth
