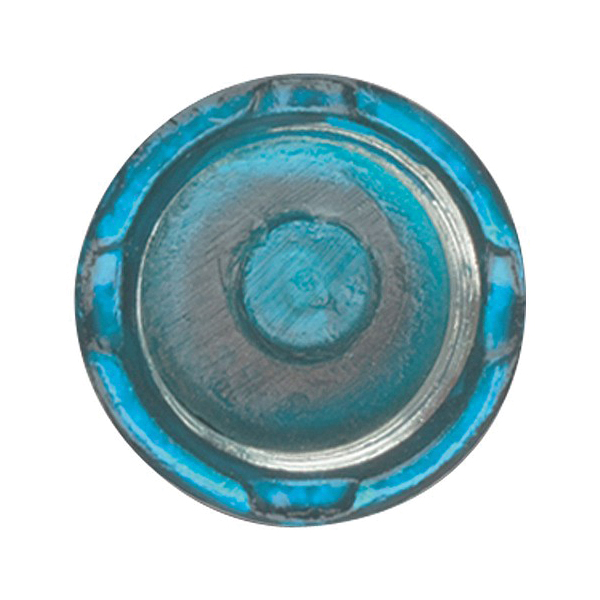

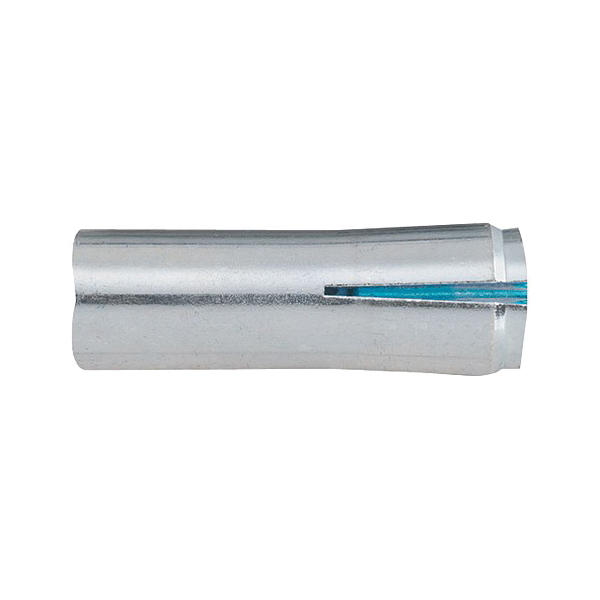

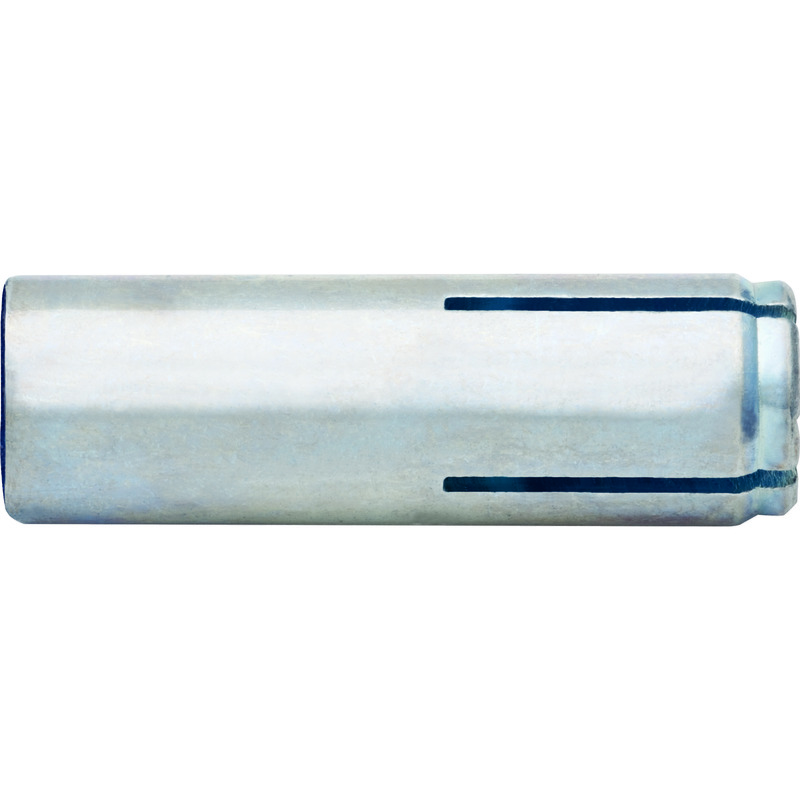

DeWALT® Smart Di™ 6306SD-PWR Internally Threaded Expansion Anchor, 3/8 in, Carbon Steel, 1/2 in Drill, 1-9/16 in D Min Embedment
08317205
MFG #: 6306SD-PWR
$0.00
/ EACH
In Stock
- Type: Internally Threaded, Smooth Wall, Threaded
- Series: Smart DI+™
- Bolt/Rod Size: 3/8
- Thread Size: 3/8-16
- Material: Carbon Steel
- Drill Size: 1/2
- Minimum Embedment Depth: 1-9/16
- Thread Length: 5/8 in
- Thread Type: UNC
- Overall Length: 1-9/16, 1-9/16 in
- Shear Strength: 810 lb at 2000 psi/925 lb at 3000 psi/1040 lb at 4000 psi for Concrete
- Tensile Strength: 600 lb at 2000 psi, 795 lb at 3000 psi, 990 lb at 4000 psi for Concrete
- Finish: Zinc Plated
DeWALT® Smart Di™ Expansion Anchor, Internally Threaded, 3/8 in Bolt/Rod, 3/8-16 Thread, Carbon Steel, 1/2 in Drill, 1-9/16 in Minimum Embedment Depth, UNC Thread, 1-9/16 in Overall Length
- Installs with reduced effort compared to traditional drop-in style anchors
- Lipped edge (DIAS) eliminates need for precisely drilled hole depth
- Can be installed using the manual setting tool or Smart DI+™ system with a hammer drill
- Available in coil-thread version for 1/2 in and 3/4 in coil-threaded rod
- Setting indicator ma
- 2600 to 2700 deg F freezing/melting point
- Internally threaded anchor for easy bolt removability and service work
- Expander plug meets minimum 50000 psi tensile strength
- Anchor can be installed through standard fixture holes
- Anchor body meets minimum 70000 psi tensile
- 10 ft-lbs tightening torque
- The allowable loads are based on a safety factor of 4
- The minimum concrete thickness is 1-1/2 times the embedment depth
Installs with reduced effort compared to traditional drop-in style anchors
Lipped edge (DIAS) eliminates need for precisely drilled hole depth
Can be installed using the manual setting tool or Smart DI+™ system with a hammer drill
Available in coil-thread version for 1/2 in and 3/4 in coil-threaded rod
Setting indicator makes identification of properly set anchors easy (when installed using the smart tool and smart bit)
2600 to 2700 deg F freezing/melting point
Internally threaded anchor for easy bolt removability and service work
Expander plug meets minimum 50000 psi tensile strength
Anchor can be installed through standard fixture holes
Anchor body meets minimum 70000 psi tensile
10 ft-lbs tightening torque
The allowable loads are based on a safety factor of 4
The minimum concrete thickness is 1-1/2 times the embedment depth
