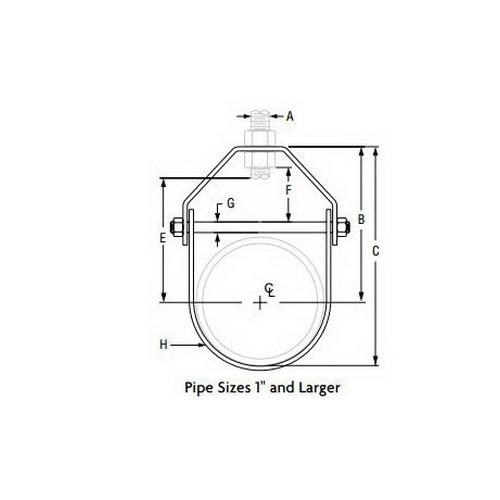

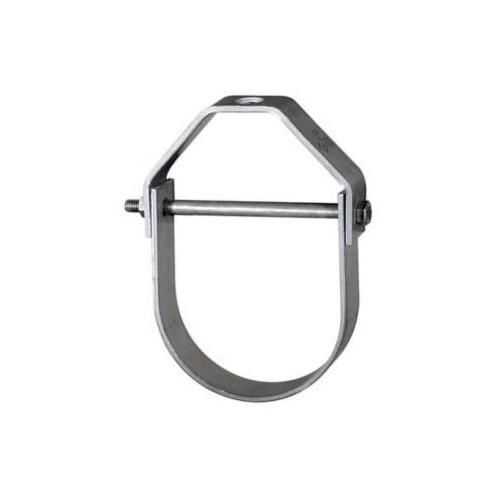

Anvil® 0500359609 FIG 260 Adjustable Clevis, 3 in Pipe, 1/2 in Rod, 1350 lb Load, Carbon Steel, Hot Dipped Galvanized
Part #09940130
Legacy #09940130
MFG #0500359609
Anvil®, 0500359609, Clevis, Adjustable, Series: FIG 260, 3 in Pipe, 1/2 in Rod, 1350 lb Load, Carbon Steel, Hot Dipped Galvanized, 450 deg F
/ Each
Product Attributes
Brand : Anvil®
Type : Adjustable
Series : FIG 260
Pipe Size : 3
Rod Size : 1/2
Load Capacity : 1350
Product Documents
Product Features
- Hanger load nut above clevis must be tightened securely to assure proper hanger performance
- Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized.
- Hanger load nut above clevis must be tightened securely to assure proper hanger performance
- Vertical adjustment without removing pipe may be made from 3/8 in through 5-1/8 in, varying with the size of clevis
- Tighten upper nut after adjustment
- Vertical adjustment without removing pipe may be made from 3/8 in through 5-1/8 in, varying with the size of clevis
- Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized
- Tighten upper nut after adjustment
- Sizes 5 in and up have rod and two nuts instead of bolt and nut, thread length on clevis rod is such that the thread locks the nuts in place and threads are not in shear plane
- Sizes 5 in and up have rod and two nuts instead of bolt and nut, thread length on clevis rod is such that the thread locks the nuts in place and threads are not in shear plane
- Hot-dip galvanized with zinc plated bolts and nuts
- Hot-dip galvanized with zinc plated bolts and nuts
