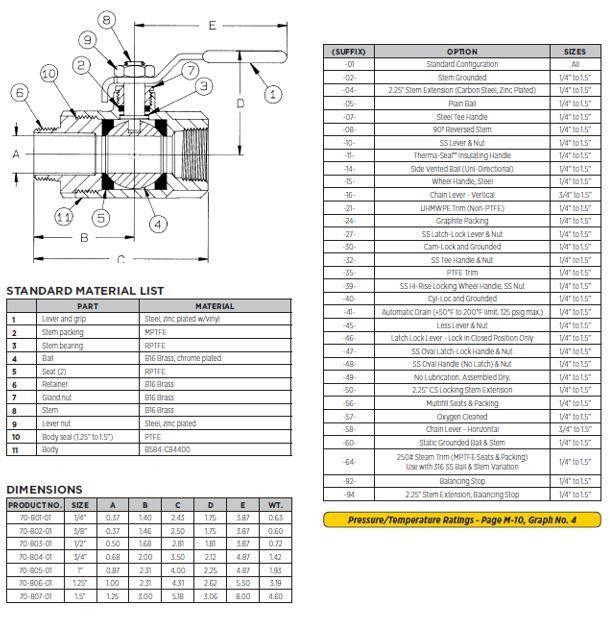

Apollo™ 7080410 70-800 2-Piece Ball Valve, 3/4 in Nominal, MNPT x FNPT End Style, Bronze Body, Standard Port, RPTFE/MPTFE Softgoods, Domestic
23132126
MFG #: 7080410
$0.00
/ Each
Item currently not in stock. Lead time based upon availability from the manufacturer.
- Actuator Type: Lever Operated
- Ball Material: Chrome Plated Brass
- Body Material: Bronze
- Domestic/Import: Domestic
- End Style: MNPT x FNPT
- Inlet to Outlet Length: 3-1/2
- Media: Gas/Water
- Nominal Size: 3/4
- Orifice Size: 3/4
- Port Type: Standard
- Pressure Rating: 600 psi CWP
- Series: 70-800
- Softgoods Material: RPTFE/MPTFE
- Temperature Rating: 425
- Top to Inlet Center: 2.12
- Trim Material: Brass Stem and PTFE Seat, Brass Stem/PTFE Seat
- Type: 2-Piece
- 10 - Stainless steel
- Reinforced seats
- Blow-out proof stem
- 150 psig saturated s
- Vacuum service to 29
10 - Stainless steel lever and nut
Reinforced seats
Blow-out proof stem
150 psig saturated steam
Vacuum service to 29 in Hg
