/ Each

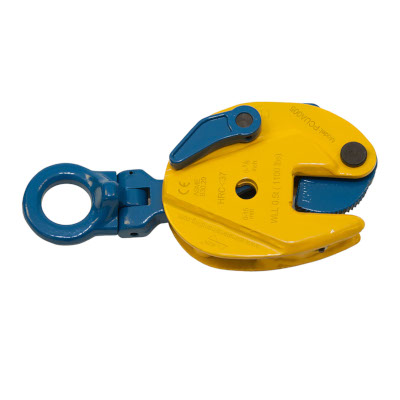

All Material Handling PCUA010 Universal Plate Lifting Clamp, 5.7 in x 11.5 in x 2.6 in, Steel, Yellow, Blue, 1 ton WLL
Part #03020010
Legacy #03020010
MFG #PCUA010
AMH Plate clamps are individually serialized and tested to a 2:1 WLL (factory certification of proof load is included). They have a 180 degree ring pivot for easy positioning. Available in capacities from 1/2-5 ton. Replacement parts kits are available.
/ Each
Product Attributes
Brand : AMH™
Type : Plate Lifting Clamp
Load Capacity : 1 ton
Maximum Spread : 3/4 in
Minimum Spread : 0 in
Headroom : 11.5 in
Product Documents
Product Features
- All steel body for durable strength in a smaller size.
- Individually serialized and tested to 2 x WLL. Factory test certification of proof load is included.
- For use with materials having surface hardness < HRC 37
- 180° turning range for easy positioning or transfer of plates.
- Lever insures pre-tensioning and release of grip jaws.
- Replacement parts kits are available.
- Meets: EU Directives: 2006/42/EC and ASME B30.20
