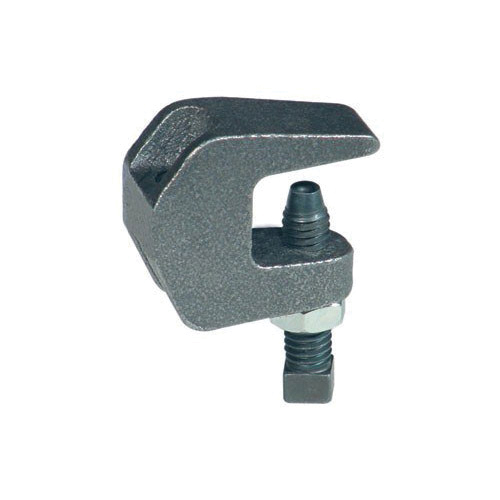

Anvil® 0560009110 FIG 92 Standard Throat Universal Beam C-Clamp, 1/2 in Rod, 950 lb Top/760 lb Bottom Load, Ductile Iron, Plain

09900749 MFG #: 0560009110
  • Type: Standard Throat
  • Series: FIG 92
  • Rod Size: 1/2
  • Load Capacity: 950 lb Top/760 lb Bottom
  • Suitable For Use With: FIG 89X Retaining Clip
  • Material: Ductile Iron
  • Finish: Plain, Zinc Plated
Anvil® Universal Beam C-Clamp, Standard Throat, Series: FIG 92, 1/2 in Rod, 950 lb Top/760 lb Bottom, For Use With: FIG 89X Retaining Clip, Ductile Iron, Plain
  • They may be attached to horizontal flanges of structural members in either the top beam or
  • They may be attached
  • Secured in place by a cup-pointed set screw tightened against the flange
  • Secured in place by
  • A jam nut is provided for tightening the set screw against the body casting
  • A jam nut is provide
  • Thru tapping of the body casting permits extended adjustment of the threaded rod
  • Thru tapping of the
  • Recommended for use under roof installations with bar joist type construction, or for atta
  • Recommended for use
They may be attached to horizontal flanges of structural members in either the top beam or bottom beam positions
They may be attached to horizontal flanges of structural members in either the top beam or bottom beam positions
Secured in place by a cup-pointed set screw tightened against the flange
Secured in place by a cup-pointed set screw tightened against the flange
A jam nut is provided for tightening the set screw against the body casting
A jam nut is provided for tightening the set screw against the body casting
Thru tapping of the body casting permits extended adjustment of the threaded rod
Thru tapping of the body casting permits extended adjustment of the threaded rod
Recommended for use under roof installations with bar joist type construction, or for attachment to the top or bottom flange of structural shapes where the vertical hanger rod is required to be offset from the edge of the flange and where the thickness of joist or flange does not exceed 3/4 in.
Recommended for use under roof installations with bar joist type construction, or for attachment to the top or bottom flange of structural shapes where the vertical hanger rod is required to be offset from the edge of the flange and where the thickness of joist or flange does not exceed 3/4 in.
