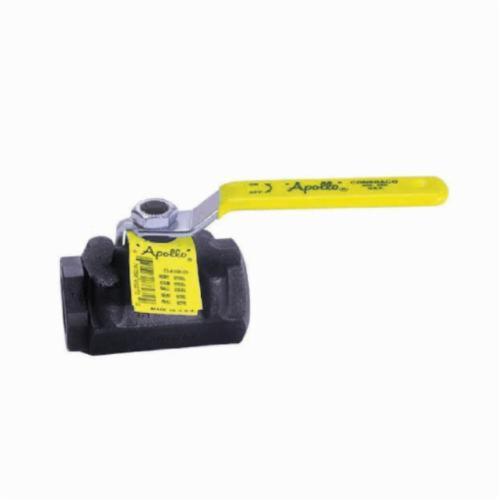

Apollo™ 73A-101-01-A 73A-100 2-Piece Ball Valve, 1/4 in, FNPT, Forged Carbon Steel Body, Standard Port, MPTFE Softgoods

23119865 MFG #: 73A-101-01-A
  • Brand: Apollo™
  • Type: 2-Piece
  • Series: 73A, 73A-100
  • Nominal Size: 1/4
  • End Style: FNPT
  • Pressure Rating: 2000 psig CWP
  • Port Type: Standard
  • Media: Water
  • Actuator Type: Lever, Lever Handle
  • Ball Material: Carbon Steel
  • Inlet to Outlet Length: 2.3
  • Top to Inlet Center: 1.72
  • Body Material: Carbon Steel, Forged Carbon Steel
  • Trim Material: Carbon Steel, Carbon Steel Stem and RPTFE Seat
  • Softgoods Material: MPTFE, MPTFE Stem Packing/RPTFE Seat/Body Seal
Apollo™ Ball Valve, 2-Piece, Series: 73A-100, 1/4 in Nominal, FNPT, 2000 psig CWP, Standard Port, Media: Water, Lever Actuator, Carbon Steel Ball, 2.3 in Inlet to Outlet Length, 1.72 in Top to Inlet Center, Forged Carbon Steel Body, Carbon Steel Stem and RPTFE Seat Trim, MPTFE Softgoods
  • Forged construction
  • Raised handle stops
  • Zinc phosphate corrosion protection
  • Blow-out proof stem
  • Vacuum service to 29 in Hg
  • Adjustable packing g
  • Zinc phosphate corro
  • Vacuum service to 29
  • ASTM A108-CS gland nut
  • Zinc plated steel lever nut
  • ASTM A216-WCB retainer
  • Zinc plated steel lever with vinyl grip
  • ASTM A108-CS gland n
  • ASTM A216-WCB retain
  • 150 psig saturated steam
  • Zinc plated steel le
  • MPTFE stem packing/body seal
  • RPTFE stem bearing
  • 150 psig saturated s
• Forged construction
Raised handle stops
Zinc phosphate corrosion protection
Blow-out proof stem
Vacuum service to 29 in Hg
• Adjustable packing gland
• Zinc phosphate corrosion protection
• Vacuum service to 29 in Hg
ASTM A108-CS gland nut
Zinc plated steel lever nut
ASTM A216-WCB retainer
Zinc plated steel lever with vinyl grip
• ASTM A108-CS gland nut
• ASTM A216-WCB retainer
150 psig saturated steam
• Zinc plated steel lever with vinyl grip
MPTFE stem packing/body seal
• RPTFE stem bearing
• 150 psig saturated steam
