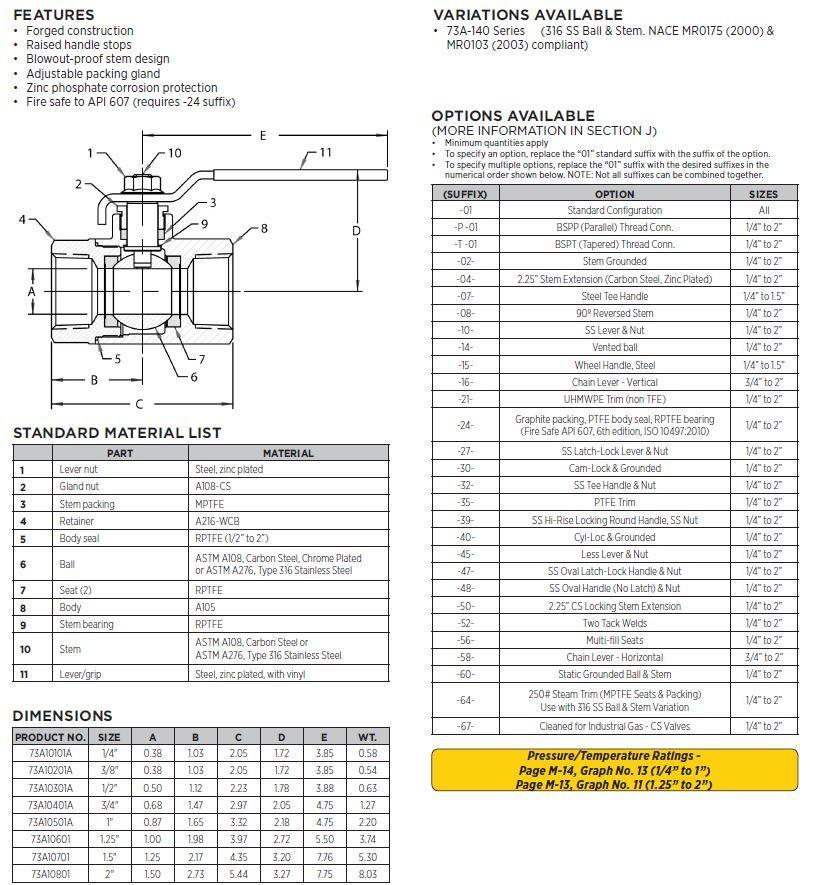

Apollo™ 73A-108-01 73A-100 2-Piece Ball Valve, 2 in Nominal, FNPT End Style, Forged Carbon Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic

23110801 MFG #: 73A-108-01
  • Brand: Apollo™
  • Type: 2-Piece
  • Series: 73A, 73A-100
  • Nominal Size: 2, 2 in
  • End Style: FNPT
  • Pressure Rating: 1500 psig CWP
  • Port Type: Standard
  • Media: Water
  • Actuator Type: Lever, Lever Handle
  • Ball Material: 316 Stainless Steel
  • Inlet to Outlet Length: 5.44
  • Top to Inlet Center: 3.27
  • Body Material: Carbon Steel, Forged Carbon Steel
  • Trim Material: 316 Stainless Steel, 316 Stainless Steel Stem and PTFE Seat
  • Softgoods Material: MPTFE Stem Packing/RPTFE Seat/Body Seal, MPTFE/PTFE
  • Domestic/Import: Domestic
Apollo™ Ball Valve, 2-Piece, Series: 73A-100, 2 in Nominal, FNPT, 1500 psig CWP, Standard Port, Media: Water, Lever Operated Actuator, 316 Stainless Steel Ball, 5.44 in Inlet to Outlet Length, 3.27 in Top to Inlet Center, Forged Carbon Steel Body, 316 Stainless Steel Stem and PTFE Seat Trim, MPTFE/PTFE, Domestic
  • Forged construction
  • Raised handle stops
  • Zinc phosphate corrosion protection
  • Blow-out proof stem
  • Vacuum service to 29 in Hg
  • Adjustable packing g
  • Zinc phosphate corro
  • Steel, zinc plated lever nut
  • Vacuum service to 29
  • ASTM A108-CS gland nut
  • Steel, zinc plated l
  • ASTM A216-WCB retainer
  • Steel, zinc plated, with vinyl lever/grip
  • ASTM A108-CS gland n
  • ASTM A216-WCB retain
  • 150 psig saturated steam
  • RPTFE body seal
  • MPTFE stem packing and PTFE body seal
  • Steel, zinc plated,
  • 150 psig saturated s
• Forged construction
Raised handle stops
Zinc phosphate corrosion protection
Blow-out proof stem
Vacuum service to 29 in Hg
• Adjustable packing gland
• Zinc phosphate corrosion protection
Steel, zinc plated lever nut
• Vacuum service to 29 in Hg
ASTM A108-CS gland nut
• Steel, zinc plated lever nut
ASTM A216-WCB retainer
Steel, zinc plated, with vinyl lever/grip
• ASTM A108-CS gland nut
• ASTM A216-WCB retainer
150 psig saturated steam
• RPTFE body seal
MPTFE stem packing and PTFE body seal
• Steel, zinc plated, with vinyl lever/grip
• 150 psig saturated steam
