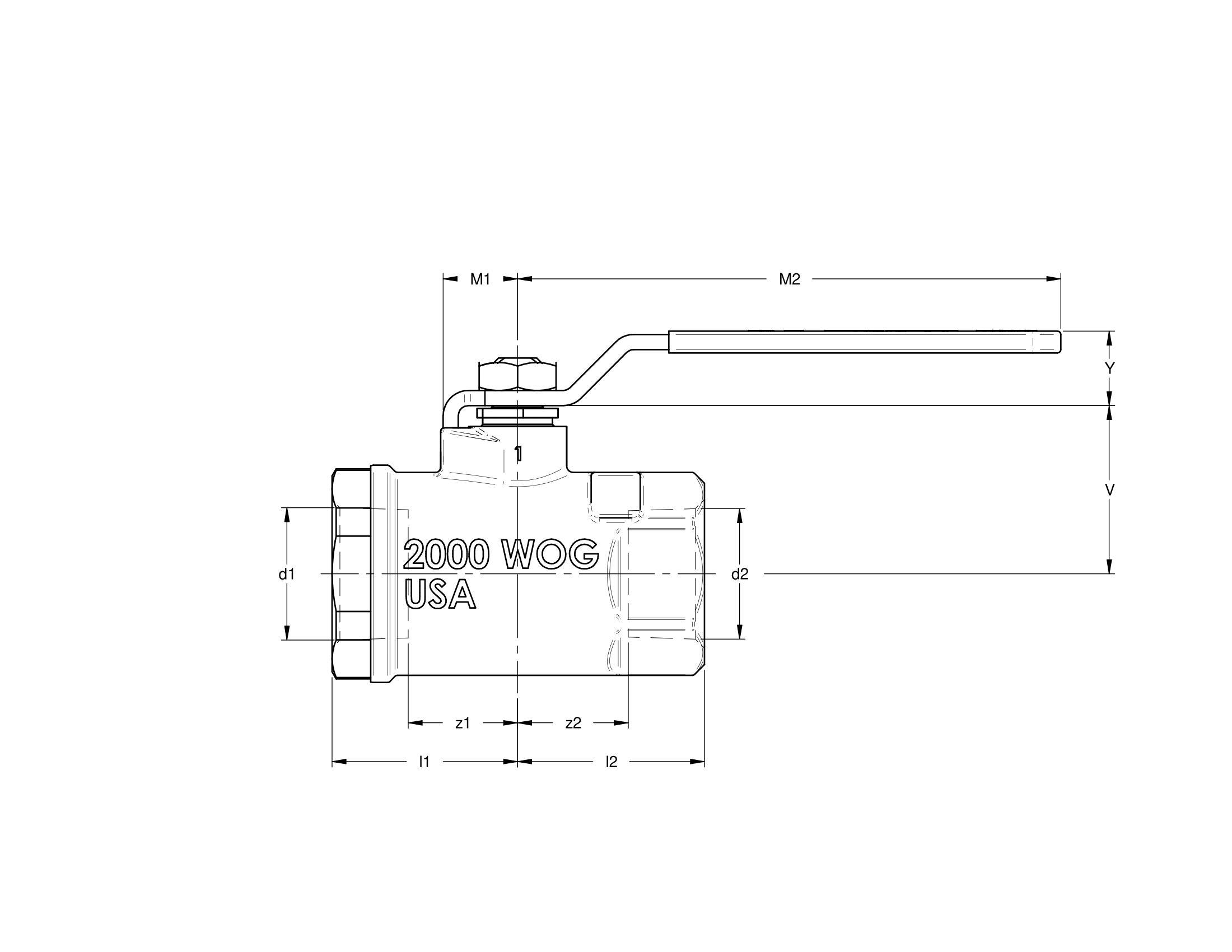

Apollo™ 7610601 76-100 2-Piece Standard Configuration Ball Valve, 1-1/4 in Nominal, FNPT End Style, 250 lb, Stainless Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic
Part #23119885
Legacy #23119885
MFG #7610601
Apollo™, 7610601, Standard Configuration Ball Valve, 2-Piece, Series: 76-100, 1-1/4 in Nominal, FNPT End Style, 150 psi Pressure, 250 lb Pressure Class, Standard Port, Media: Gas/Water, 1 in Orifice, Lever Handle Actuator, 316 Stainless Steel Ball, 4 in Inlet to Outlet Length, 2 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/RPTFE Trim, MPTFE/PTFE Softgoods, Domestic
/ Each
Product Attributes
Brand : Apollo™
Type : 2-Piece
Series : 76-100
Nominal Size : 1-1/4, 1-1/4 in
End Style : FNPT
Pressure Rating : 150, 150 psig Saturated Steam
Product Documents
Product Features
- Investment cast components
- Investment cast components
- 01: standard configuration
- Investment cast components
- Reinforced seat
- Reinforced seat
- Mounting pad for easy actuator mounting
- Mounting pad for easy actuator mounting
- Reinforced seats
- Mounting pad for easy actuator mounting
- Blow-out proof stem design
- Blow-out proof stem design
- Blow-out proof stem
- Vacuum service to 29 in Hg
- Vacuum service to 29 in Hg
- 150 psig steam working pressure
- 150 psig steam working pressure
- Vacuum service to 29 in Hg
- 304 stainless steel with vinyl grip handle
- 304 stainless steel with vinyl grip handle
- 150 psig steam working pressure
- 18-8 stainless steel lever nut
- 18-8 stainless steel lever nut
- 304 stainless steel with vinyl grip handle
- ASTM A351-CF8M stainless steel retainer
- A276-316 stainless steel gland nut/stem
- 18-8 stainless steel lever nut
- PTFE seal and MPTFE stem packing
