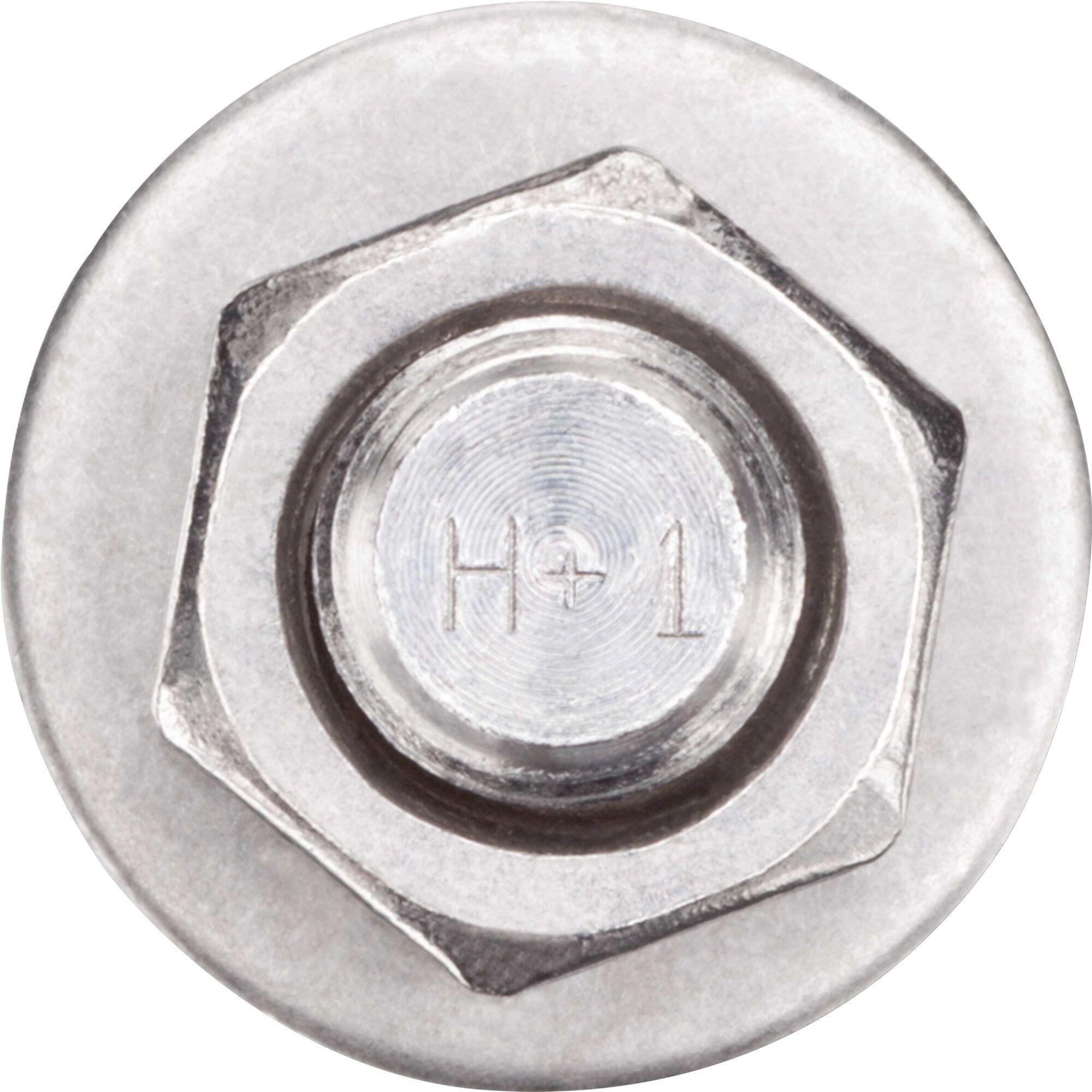

DeWALT® 7415SD1-PWR SD1 Expansion Wedge Anchor, 3/8 in Dia, 3-3/4 in OAL, 2-3/8 in L Thread, Carbon Steel, Zinc Plated
Part #DEWALT 7415SD1-PWR
Legacy #08337334
MFG #7415SD1-PWR
DeWALT®, 7415SD1-PWR, Expansion Wedge Anchor, Series: SD1, 3/8 in Diameter, 3-3/4 in Overall Length, 2-3/8 in Thread Length, Carbon Steel, Zinc Plated, 1-5/8 in Minimum Embedment Depth, 3/8-16 Thread, Threaded Stud Head, UNC Thread, 1-3/4 in Maximum Work Thickness, 2540 lb Shear Strength, 3100 lb Tensile Strength
/ Box of 50
Product Attributes
Brand : DeWALT®
Type : Expansion
Series : SD1, Wedge-All®
Diameter : 3/8
Overall Length : 3-3/4, 3-3/4 in
Thread Length : 2-3/8, 2-3/8 in, 2-5/8
Product Documents
Product Features
- Anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete
- Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
- Anchor can be installed through standard fixture holes
- Suitable base materials include normal-weight concrete, structural sand-lightweight
- One-piece, wrap-around clip ensures uniform holding capacity
- Anchor design allows for follow-up expansion after setting under tensile loading
- 2540 lb ultimate load, 2540 lb 3000 psi concrete, 2540 lb 4000 psi concrete
- Threaded end is chamfered for ease of starting nut
- 2540 lb ultimate load, 2540 lb 3000 psi concrete, 2540 lb 4000 psi concrete
- Nominal drill bit diameter same as Anchor diameter
- 2685 lb, 2685 lb 3000 psi concrete, 3100 lb 4000 psi concrete
- Available in a wide range of diameters and lengths
- 2685 lb, 2685 lb 3000 psi concrete, 3100 lb 4000 psi concrete
- Length ID code and identifying marking stamped on head of each Anchor
- Carbon steel ASTM A563 grade A nut
- Ultimate load capacity - 2240 lb tensile strength when embedded in 2500 psi, 2685 lb tensile strength when embedded in 3000 psi, 3100 lb tensile strength when embedded in 4000 psi normal-weight concrete
- The minimum concrete thickness is 1-1/2 times the embedment depth
- Anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete
- The allowable loads are based on a safety factor of 4
- Suitable base materials include normal-weight concrete, structural sand-lightweight
- 7/16 in minimum fixture hole
- 30 ft-lb installation torque
- 1560 lb at 2000 psi/2880 lb at 4000 psi ultimate tension loads and 390 lb at 2000 psi, 555 lb at 3000 psi, 720 at 4000 psi allowable tension load for concrete
- 2280 lb at 2000 psi ultimate shear loads and 570 lb at 2000/3000/4000 psi allowable shear load for concrete
- Anchor body material meets minimum 70000 psi tensile strength
