/ Box of 20

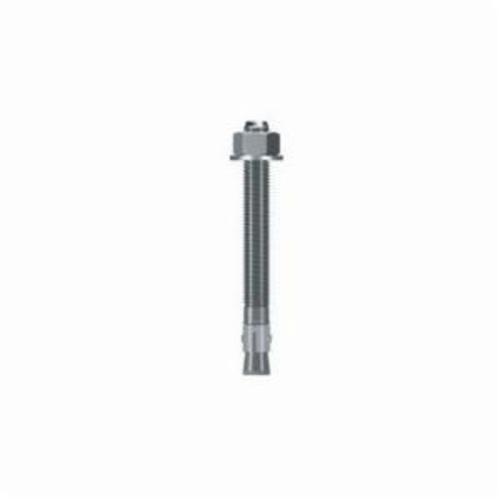

Simpson Strong-Tie® WA75700 Wedge-All® Wedge Anchor, 3/4 in Dia, 7 in OAL, 5-1/8 in L Thread, Carbon Steel, Zinc Plated
Part #DEWALT 7446SD1-PWR
Legacy #08375700
MFG #WA75700
Simpson Strong-Tie® Wedge Anchor, Series: Wedge-All®, 3/4 in Dia, 7 in Overall Length, 5-1/8 in Thread Length, Carbon Steel, Zinc Plated, 3-3/8 in Minimum Embedment Depth, 3/4 in Drill, 1-1/8 in Head, 792 lb Shear Strength, 544 lb Tensile
/ Box of 20
Product Attributes
Brand : DeWALT®
Type : Expansion
Series : Wedge-All®
Diameter : 3/4
Overall Length : 7
Thread Length : 4-1/2, 5-1/8
Product Documents
Product Features
- Consistent performance in high and low strength concrete
- Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
- Consistent performance in high and low strength concrete
- Nominal drill bit size is the same as the anchor diameter
- One-piece, wrap-around clip ensures uniform holding capacity
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard fixture holes
- Threaded end is chamfered for ease of starting nut
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading
- Available in a wide range of diameters and lengths
- Length ID code and identifying marking stamped on head of each anchor
- Length ID code and identifying marking stamped on head of each anchor
- Carbon steel ASTM A563 grade A nut
- Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
- Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
- The minimum concrete thickness is 1-1/2 times the embedment depth
- Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
- Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
- The allowable loads are based on a safety factor of 4
- 7/8 in minimum fixture hole
- 150 ft-lb installation torque
- 6760 lb at 2000 psi, 9960 lb at 4000 psi ultimate tension loads and 1690 lb at 2000 psi, 2090 lb at 3000 psi, 2490 lb 4000 allowable tension load psi for concrete
- 11360 lb at 2000 psi ultimate shear loads and 2840 lb at 2000/3000/4000 psi for concrete
- Anchor body material meets minimum 70000 psi tensile strength
