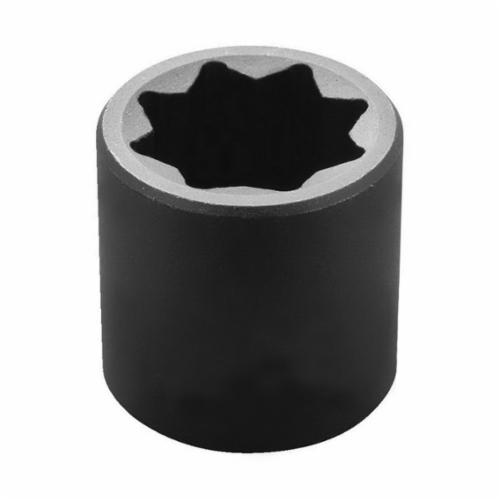

Proto® TorquePlus™ J7420S Standard Length Socket, Imperial, 1/2 in Square Drive, 5/8 in
Part #20780336
Legacy #20780336
MFG #J7420S
Proto® TorquePlus™ Socket, Standard Length, Yes Impact Rated, Measurement System: Imperial, Square Drive, 1/2 in Drive, 5/8 in Socket, 1-1/2 in Overall Length, 27/32 in Opening Depth, 1-1/8 in Drive End Width, 1-1/8 in Socket End Width, Side Locking Hole Locking, 8 Points, 27/32 in Bolt Clearance Depth, Alloy Steel, Black Oxide
/ Each
Product Attributes
Brand : Proto®
Type : Standard Length
Impact Rated : Yes
Measurement System : Imperial
Drive Type : Square
Drive Size : 1/2
Product Documents
Product Features
- Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls
- Tight tolerances for snug fit on fastener
- Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners
- Made from high strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude
- Impact sockets are used wherever powered drive tools are used to install or remove fasteners
- Impact sockets are designed to withstand higher torque and force associated with impact tools in repetitive application
- The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners
- The TorquePlus™ configuration employs a radius corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage
- The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life and allows the user to more easily turn worn, rounded or rusted fasteners
- Socket size stamped on tool for easy identification
