$17.48 / Each
In Stock

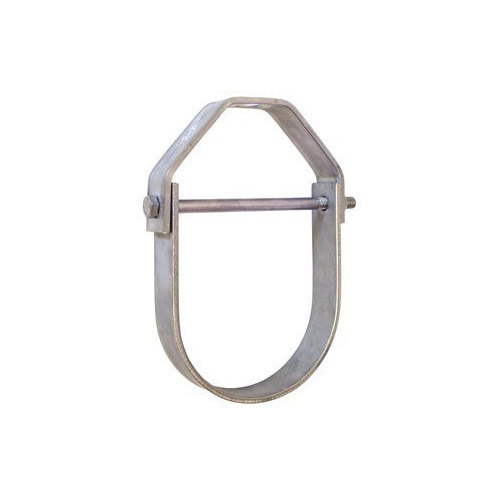

Anvil® 0500360540 FIG 260SS Adjustable Clevis Hanger, 1-1/2 in Pipe, 3/8 in Rod, 730 lb Load, 304 Stainless Steel
Part #09961400
Legacy #09961400
MFG #0500360540
Anvil® Clevis Hanger, Adjustable, Series: FIG 260SS, 1-1/2 in Pipe, 3/8 in Rod, 730 lb, 9 ft Span, 304 Stainless Steel
$17.48 / Each
In Stock
Product Attributes
Brand : Anvil®
Type : Adjustable
Series : FIG 260SS
Pipe Size : 1-1/2
Rod Size : 3/8
Load Capacity : 730
Product Documents
Product Features
- Hanger load nut above clevis must be tightened securely to assure proper hanger performance
- Hanger load nut above clevis must be tightened securely to assure proper hanger performance
- Vertical adjustment without removing pipe may be made from 3/8 in through 5-1/8 in, varying with the size of clevis
- Vertical adjustment without removing pipe may be made from 3/8 in through 5-1/8 in, varying with the size of clevis
- Tighten upper nut after adjustment
- Tighten upper nut after adjustment
- Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized
- Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized
- Thread length on clevis rod is such that the thread locks the nuts in place and threads are not in shear plane
- Thread length on clevis rod is such that the thread locks the nuts in place and threads are not in shear plane
- Span represents the maximum span for water filled pipe
- Span represents the maximum span for water filled pipe
