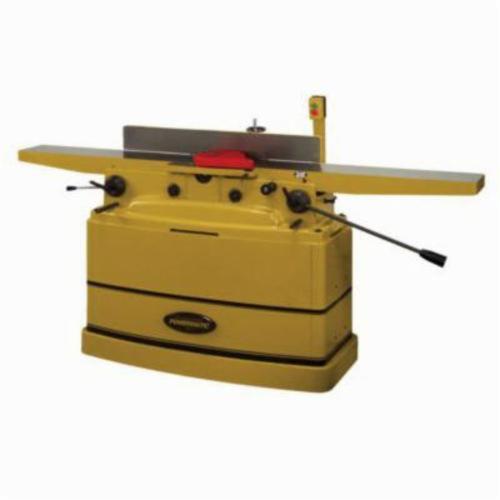

Powermatic® 1610082 PJ-882HH Parallelogram Jointer, 8 in W x 1/2 in D Jointing, 230 VAC
54335144
MFG #: 1610082
$0.00
/ Each
Item currently not in stock. Lead time based upon availability from the manufacturer.
- Bare Tool/Kit: Bare Tool
- Tool/Kit: Bare Tool, Tool Only
- Type: Parallelogram
- Series: PJ-882HH
- Jointing Capacity: 8 in W x 1/2 in D
- Horsepower: 2
- Voltage Rating: 230
- Amperage Rating: 9 A Motor, 20 A Circuit
- Cutter Speed: 7000
- Cutter Head Diameter: 3-1/16
- Number of Knives: 54
- Knife size: 15 in L x 15 in W x 2.5 in THK Helical
- Table Size: 82 in L x 8 in W
- Table Height: 31-5/16
- Fence Positive Stops: 45 deg, 90 deg, -45 deg
Powermatic® Jointer, Parallelogram, Bare Tool Tool/Kit, Series: PJ-882HH, 8 in W x 1/2 in D Jointing, 2 hp, 230 VAC, 9 A Motor, 20 A Circuit, 7000 rpm Cutter, 3-1/16 in Cutter Head Dia, 54 knives, 15 in L x 15 in W x 2.5 in THK Helical Knife size, 82 in L x 8 in W Table, 31-5/16 in Table Height, 45 deg, 90 deg, -45 deg Fence Positive Stops
- Helical cutter head with 4-sided carbide knife inserts provides smoother, quieter cutting
- Extra long 82 in table for expanded work support
- Parallelogram design helps maintain table parallelism and eases table raising and lowering
- Handwheel with worm gear system for precise fence tilting (patented)
- 1/8 in depth of cut limiter for fast table positioning
- High mount switch for operator convenience
- No-mar fence insert protects table
- The 8" parallelogram jointer offers performance and value in a machine loaded
- The cutterhead is a helical design with 54 four sided knife inserts - these produce a supe
- He jointer has an extra long 82 in bed for better work support and is equipped with an inn
- A non-mar insert in the fence contacts the table to avoid scratching the surface during ad
- The parallelogram design keeps the table in close proximity to the cutterhead for improved
- This design also insures the table remains perfectly parallel, even after years of heavy u
- The 2HP motor is totally enclosed in a heavy steel stand, providing plenty of power and st
Helical cutter head with 4-sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
Extra long 82 in table for expanded work support
Parallelogram design helps maintain table parallelism and eases table raising and lowering
Handwheel with worm gear system for precise fence tilting (patented)
1/8 in depth of cut limiter for fast table positioning
High mount switch for operator convenience
No-mar fence insert protects table
The 8" parallelogram jointer offers performance and value in a machine loaded
The cutterhead is a helical design with 54 four sided knife inserts - these produce a superior finish and much quieter operation than conventional cutterheads, and the inserts do not require adjustment once installed
He jointer has an extra long 82 in bed for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 deg
A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments
The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment
This design also insures the table remains perfectly parallel, even after years of heavy use
The 2HP motor is totally enclosed in a heavy steel stand, providing plenty of power and stability for the most demanding jobs
