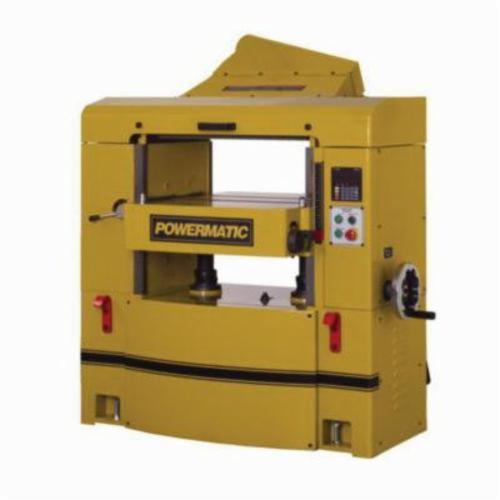

Powermatic® 1791303 WP2510 Helical Adjustable Planer, 25 in W Cutting, 1/4 in Depth of Cut, 5000 rpm Speed, 15 hp, 230/460 VAC, Tool Only
54335184
MFG #: 1791303
$0.00
/ Each
Item currently not in stock. Lead time based upon availability from the manufacturer.
- Tool/Kit: Bare Tool
- Type: Helical
- Series: WP2510
- Cutting Width: 25
- Depth of Cut: 1/4
- Cuts per Minute: 30000
- Feed Rate: 20/25/30
- Number of Cutting Knives: 174 Four-Sided Inserts
- Speed: 5000
- Minimum Planing Length: 10
- Horsepower: 15
- Voltage Rating: 230/460
- Amperage Rating: 37/18.5
- Material: Cast Iron/Solid Steel
- Dimensions: 52 in L x 36 in W x 59 in H
Powermatic® Adjustable Planer, Helical, Series: WP2510, 25 in Cutting Width, 1/4 in Depth of Cut, 30000 cpm Cuts per Minute, 20/25/30 fpm Feed Rate, 174 Four-Sided Inserts Cutting Knives, 5000 rpm Speed, 10 in Minimum Planing Length, 15 hp, 230/460 VAC, 37/18.5 A, Cast Iron/Solid Steel, 52 in L x 36 in W x 59 in H Dimensions
- Solid steel helical insert head with four sided carbide insert tooling, eliminates need fo
- Digital readout and simple PC controller make quick and easy table height set ups
- Segmented serrated infeed roll with segmented chip breakers has 1/4 in independent yield,
- Massive gear box maintains positive feed by using a large chain drive with automatic chain
- 3 in diameter infeed and outfeed rollers are supported by four large needle bearings for l
- Quick set micro adjustable lever easily raises and lowers table rollers from 0 in to 0.05
- Frame machined from heavy cast iron and extra wide side panels with gibs, offers rigid bed
- Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precis
- 3-speed feed selector allows you to quickly change feed rates
- Large 32-3/16 x 26 precision ground table contains two adjustable table rollers for smooth
- The hood features a built in 5 in diameter dust chute
Solid steel helical insert head with four sided carbide insert tooling, eliminates need for adjustment after changing knives, reduces sound levels
Digital readout and simple PC controller make quick and easy table height set ups
Segmented serrated infeed roll with segmented chip breakers has 1/4 in independent yield, for planning multiple height stock
Massive gear box maintains positive feed by using a large chain drive with automatic chain tensioners, to power infeed and outfeed rollers
3 in diameter infeed and outfeed rollers are supported by four large needle bearings for long life
Quick set micro adjustable lever easily raises and lowers table rollers from 0 in to 0.05 in at a touch
Frame machined from heavy cast iron and extra wide side panels with gibs, offers rigid bed support and accurate alignment
Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding
3-speed feed selector allows you to quickly change feed rates
Large 32-3/16 x 26 precision ground table contains two adjustable table rollers for smooth feeding of uneven stock
The hood features a built in 5 in diameter dust chute
