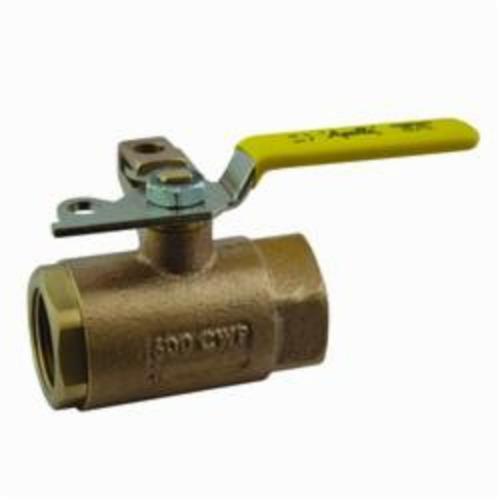

Apollo™ 75-104-01 75-100 2-Piece Ball Valve With Pad Lock, 3/4 in Nominal, FNPT End Style, Bronze Body, Standard Port, Domestic

23175104 MFG #: 75-104-01
  • Type: 2-Piece
  • Series: 75-100
  • Nominal Size: 3/4, 3/4 in
  • End Style: FNPT
  • Pressure Rating: 600 psig CWP
  • Temperature Rating: 50 to 200
  • Port Type: Standard
  • Actuator Type: Lever, Lever Handle, Lever Operated
  • Ball Material: Chrome Plated Brass
  • Inlet to Outlet Length: 3.35
  • Top to Inlet Center: 2.2
  • Body Material: Bronze
  • Trim Material: Brass, Brass Stem and RPTFE Seat
  • Softgoods Material: RPTFE Seat
  • Domestic/Import: Domestic
Apollo™ Ball Valve, 2-Piece, Series: 75-100, 3/4 in Nominal, FNPT, 600 psig CWP, 50 to 200 deg F, Standard Port, Lever Operated Actuator, Chrome Plated Brass Ball, 3.35 in Inlet to Outlet Length, 2.2 in Top to Inlet Center, Bronze Body, Brass Stem and RPTFE Seat Trim, Domestic
  • 01: Standard configuration
  • Reinforced seats
  • Blow-out proof stem
  • May be padlocked in open or closed position with no change of hardware
  • 150 psig saturated steam
  • Vacuum service to 29 in Hg
  • Cold non-shock
  • Hardened ball for wear resistance
01: Standard configuration
Reinforced seats
Blow-out proof stem
May be padlocked in open or closed position with no change of hardware
150 psig saturated steam
Vacuum service to 29 in Hg
Cold non-shock
Hardened ball for wear resistance
