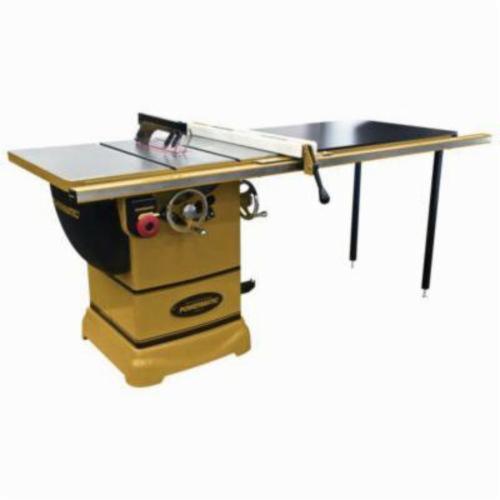

Powermatic® 1791001K PM1000 Cabinet Table Saw, 10 in Dia Blade, 5/8 in Arbor/Shank, 2-1/8 in 45 deg Capacity, 3-1/8 in 90 deg Capacity, 1-3/4 hp, Tool Only
54335273
MFG #: 1791001K
$0.00
/ Each
- Bare Tool/Kit: Bare Tool
- Type: Cabinet
- Series: PM1000
- Blade Diameter: 10
- Arbor/Shank Size: 5/8
- 45 DEG Capacity: 2-1/8
- 90 DEG Capacity: 3-1/8
- Speed: 4200
- Cutting Capacity Rip Left: 12
- Cutting Capacity Rip Right: 16 ga
- Table Size: 20 x 27 in, 40 x 27 in Extension, 75-3/8 x 27 in Full Extension
- Maximum Width of Dado: 13/16
- Maximum Diameter of Dado: 8
- Horsepower: 1-3/4
- Voltage Rating: 115/230
- Amperage Rating: 15/7.5
- Housing Material: Cast Iron
Powermatic® Table Saw, Cabinet, Series: PM1000, 10 in Diameter Blade, 5/8 in Arbor/Shank, 45 DEG Capacity: 2-1/8 in, 90 DEG Capacity: 3-1/8 in, 4200 rpm Speed, Cutting Capacity Rip Left: 12 in, Cutting Capacity Rip Right: 16 ga, 20 x 27 in, 40 x 27 in Extension, 75-3/8 x 27 in Full Extension Table, 13/16 in Maximum Width of Dado, 8 in Maximum Diameter of Dado, 1-3/4 hp, 115/230 VAC, 15/7.5 A, Cast Iron Housing Material
- Cabinet saw that only requires 115 V power
- A blade surround and collection hose provide an unobstructed path, maximizing dust collect
- Conveniently located hands free power switch
- Tool-less guard assembly with independent side leaves is easy to use, maximizing safety
- Sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full r
- Exclusive AccuFence provides rigidity and precision
- Poly-V belt drive system reduces vibration and maximizes efficiency
- Ergonomically designed 7 in handwheels provide momentum - making blade height and bevel ad
- Arbor lock allows for one handed blade changes with minimal tools
- Cast iron work surface features a beveled edge
- 4 in dust port outside diameter
- 3/4 x 3/8 in table T-slot
- 1 phase motor
- 20 A recommended circuit size
- 350 dust collection minimum cfm required
- 10 in table in front of saw blade at maximum depth of cut
Cabinet saw that only requires 115 V power
A blade surround and collection hose provide an unobstructed path, maximizing dust collection
Conveniently located hands free power switch
Tool-less guard assembly with independent side leaves is easy to use, maximizing safety
Sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts
Exclusive AccuFence provides rigidity and precision
Poly-V belt drive system reduces vibration and maximizes efficiency
Ergonomically designed 7 in handwheels provide momentum - making blade height and bevel adjustments easy
Arbor lock allows for one handed blade changes with minimal tools
Cast iron work surface features a beveled edge
4 in dust port outside diameter
3/4 x 3/8 in table T-slot
1 phase motor
20 A recommended circuit size
350 dust collection minimum cfm required
10 in table in front of saw blade at maximum depth of cut
