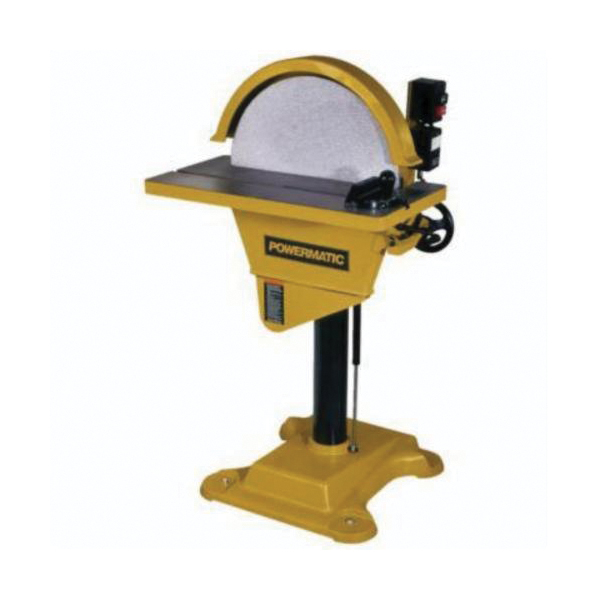

Powermatic® 1791276 DS20 Disc Sander, 2 hp, 1720 rpm

54335175 MFG #: 1791276
$0.00 / Each
  • Bare Tool/Kit: Bare Tool
  • Series: DS20
  • Speed: 1720
  • Horsepower: 2
  • Voltage Rating: 230
  • Amperage Rating: 14
Powermatic® Disc Sander, Bare Tool, Series: DS20, 1720 rpm, 2 hp, 230 VAC, 14 A
QTY
  • Direct drive from motor to disc for maximum efficiency, with a hand activated brake for qu
  • Tilting table allows bevel sanding
  • Miter gauge for angle sanding
  • 20 in sanding disc for larger workpieces
  • 4 in port for connection to any dust collection system
  • Cast iron base for rigidity
  • Swing away guard makes changing abrasive discs quick and easy
  • 20 in disc diameter
  • 600 dust collection minimum cfm required
  • 4 in dust port outside diameter
  • 10-1/2 in L x 27-1/2 in W disc table size
  • 1 phase motor
  • 30 A recommended circuit size
  • 30 up, 45 down deg disc table tilt
Direct drive from motor to disc for maximum efficiency, with a hand activated brake for quick stoppage of disc
Tilting table allows bevel sanding
Miter gauge for angle sanding
20 in sanding disc for larger workpieces
4 in port for connection to any dust collection system
Cast iron base for rigidity
Swing away guard makes changing abrasive discs quick and easy
20 in disc diameter
600 dust collection minimum cfm required
4 in dust port outside diameter
10-1/2 in L x 27-1/2 in W disc table size
1 phase motor
30 A recommended circuit size
30 up, 45 down deg disc table tilt
