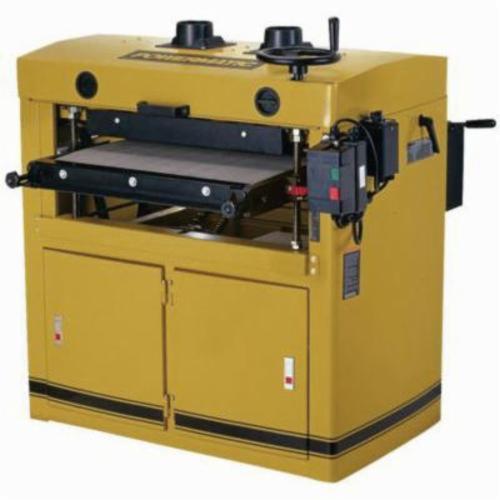

Powermatic® 1791290 DDS-225 Dual Locking Drum Sander, 6 in Dia x 37 in L, 5 hp
54335180
MFG #: 1791290
$0.00
/ Each
Ships within 10 days
- Bare Tool/Kit: Bare Tool
- Type: Dual Locking
- Series: DDS-225
- Drum Diameter: 6
- Drum Length: 37
- Drum Speed: 1700
- Horsepower: 5
- Voltage Rating: 230
Powermatic® Drum Sander, Dual Locking, Bare Tool, Series: DDS-225, 6 in Drum Dia, 37 in Drum Length, 1700 rpm Drum, 5 hp, 230 VAC
- 5 hp motor for plenty of power
- Independently adjustable rear drum for fine tuning
- Hard durometer rubber coating on steel drums provide flat, smooth finish
- Two-speed gearbox for wide range of sanding projects
- Full size cast iron table for solid support
- Forward/reverse poly conveyor belt grips stock evenly
- Dual dust ports with directional baffles for more efficient dust removal
- A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep
- The 1/4 hp feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 a
- Heavy steel cabinet provides vibration free sanding, with plenty of storage space undernea
- 8 and 12 fpm conveyor speed, 6 in drum diameter
- 1 phase motor
- 1/32 - 5-1/4 in board thickness
- 9 in min board length
- 1/4 hp conveyor motor
- 600 dust collection minimum cfm required
- Dual 4 in dust port outside diameter
- 25 in max board width
- 40 A recommended circuit size, 25 in drum length, 2 sanding drums
5 hp motor for plenty of power
Independently adjustable rear drum for fine tuning
Hard durometer rubber coating on steel drums provide flat, smooth finish
Two-speed gearbox for wide range of sanding projects
Full size cast iron table for solid support
Forward/reverse poly conveyor belt grips stock evenly
Dual dust ports with directional baffles for more efficient dust removal
A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times
The 1/4 hp feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute
Heavy steel cabinet provides vibration free sanding, with plenty of storage space underneath
8 and 12 fpm conveyor speed, 6 in drum diameter
1 phase motor
1/32 - 5-1/4 in board thickness
9 in min board length
1/4 hp conveyor motor
600 dust collection minimum cfm required
Dual 4 in dust port outside diameter
25 in max board width
40 A recommended circuit size, 25 in drum length, 2 sanding drums
